Towbar Citroën C6 Type TD from 01/2006 to today : Vertical detachable Towbar incl. 7 pin universal multiplex wiring kit BOISNIER

VERTICAL DETACHABLE TOWBAR

In effect, the towbar support, where the ball joint fits (sleeve), is completely invisible once the ball joint is removed. Moreover, the ball joint is very easy to remove, without the use of tools and in complete safety thanks to its key locking system. After towing your trailer, caravan or bike carrier, you can remove your ball joint and store it in its bag.

Installation :

7-PIN BEAM+ ELECTRONIC BOX FOR MULTIPLEX VEHICLE

The towbar electric wiring kit the practical solution to power your trailer lights, bike carrier or any other towing accessory. While remaining economical, the ready-to-install 7-pin wiring kit with electronic box allows for easy installation on all multiplexed vehicles.

The matic V7 relay does not require any reprogramming of your vehicle. So unlike the specific wiring kit, you don't have to go to your manufacturer or to a garage to reprogram your car.

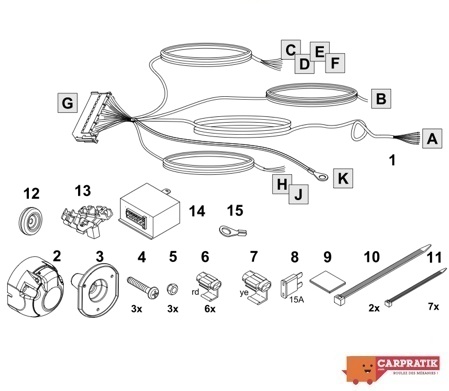

You also have a picture of the assembly instructions. The approximate time to assemble a wiring kit is about 15-30 minutes.

BEAM CHARACTERISTICS

Number of pins	7
Reprogramming	No
Compatibility Bulb	Alltypes : traditional, LED, à dual intensity
Output protections	- outputs protected against short circuits -Reverse polarity protection -IP50 Protection
Pre-mounted terminal on the box	Yes
Warranty	2 years

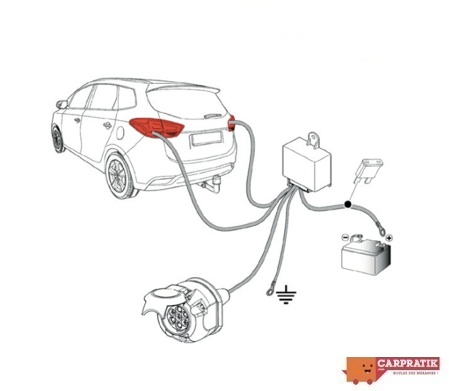

• The wiring kit is connected to the rear lights, so no reprogramming is required, making it easy to fit.
• In addition, the wiring kit does not affect the operation of the reversing radars.
• The wiring kit allows you to transfer information from your lights to your trailer (turn signals, brake lights, etc.).

BENEFITS AND SECURITY

• Easy to use, the ball joint is characterised by quick assembly/disassembly.
• No tools are required to attach the ball joint.
• Retractable wiring kit support, which can be stored behind the bumper after use.
• The sleeve is vertical, which makes it completely invisible when you remove the ball joint.
• Designed specifically for your vehicle
• Cathodic dip coating to prevent oxidation of your towbar
• Preserves the aesthetics of the vehicle thanks to the ball joint that fits behind the bumper
• Approved to European standard EC94/20 with attachment to the designated anchor points
• The ball joint is securely fixed to the towbar with 2 large HM16 screws
• BOISNIER GDW guarantees its Trowbars for a period of 3 years
• Certified ISO 3853/ISO 1176/ISO 1103
• Allows you to tow a maximum load with your trailer hitch

Wiring Kit

• Allows you to supply electricity to the lights of your trailer and bike carrier
• No reprogramming required
• Fits all multiplexed vehicles
• Comes pre-wired with 2400mm sheathed wires, allowing the module to be mounted on either side
• Power wire (more permanent) is 5.5m long
• Pre-mounted terminal on the trailer socket earth

GDW hitches comply with all the European standards in force, if you want to know more about les the certifications, strandards and guarantees of GDW hitches click here

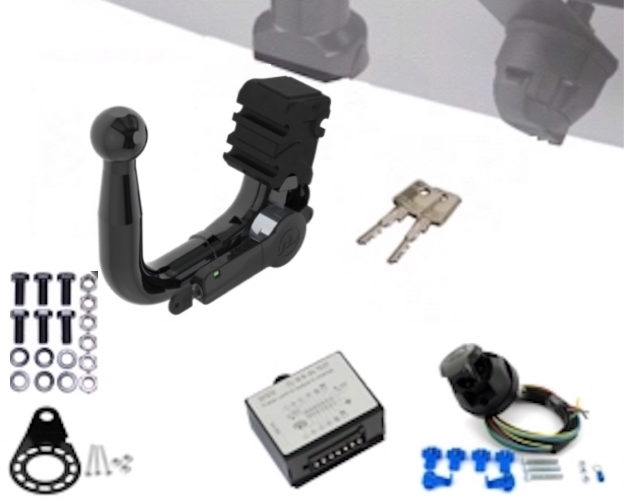

CONTENTS OF THE PACK
